Cigar Box Guitar Parts and More at MGB Guitars

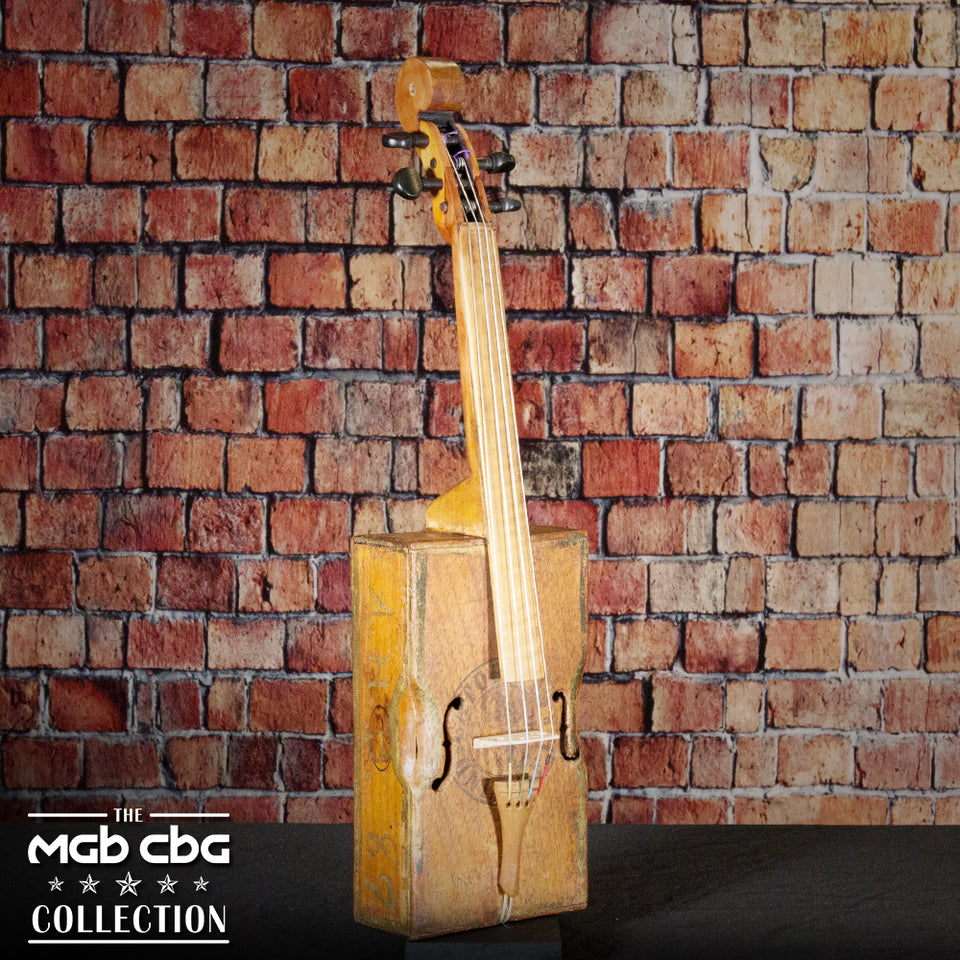

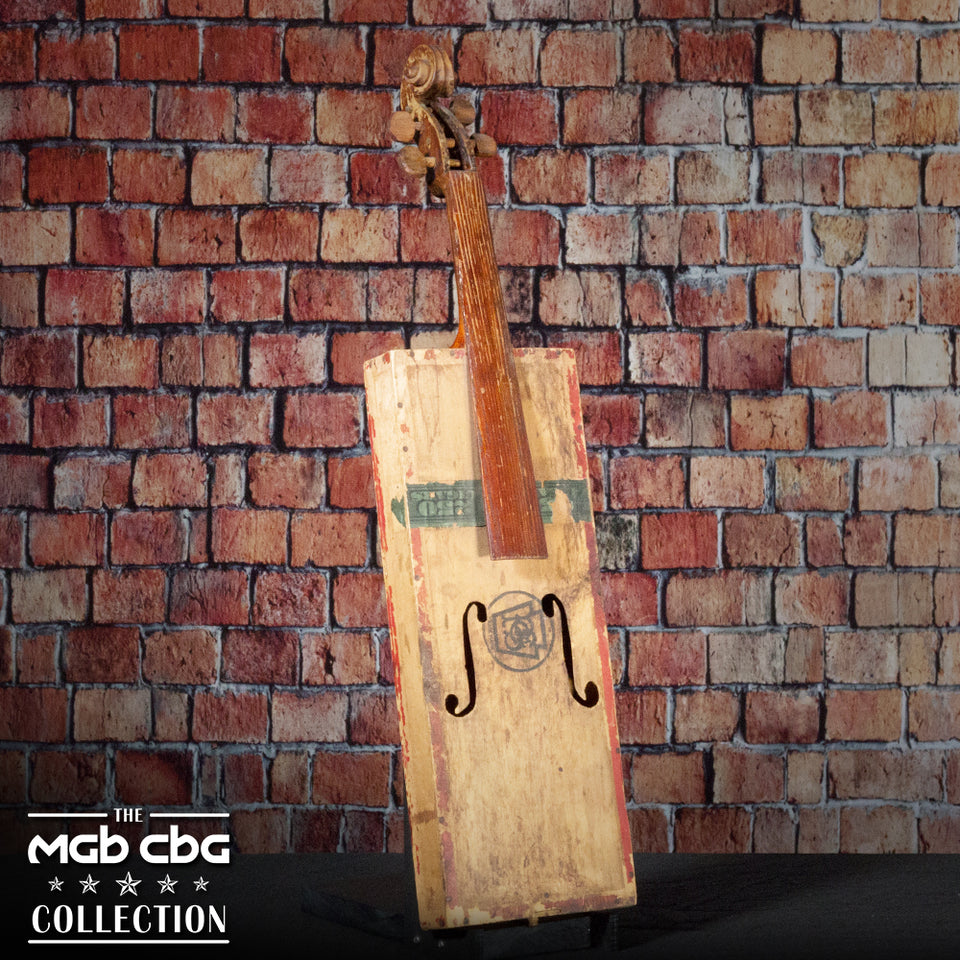

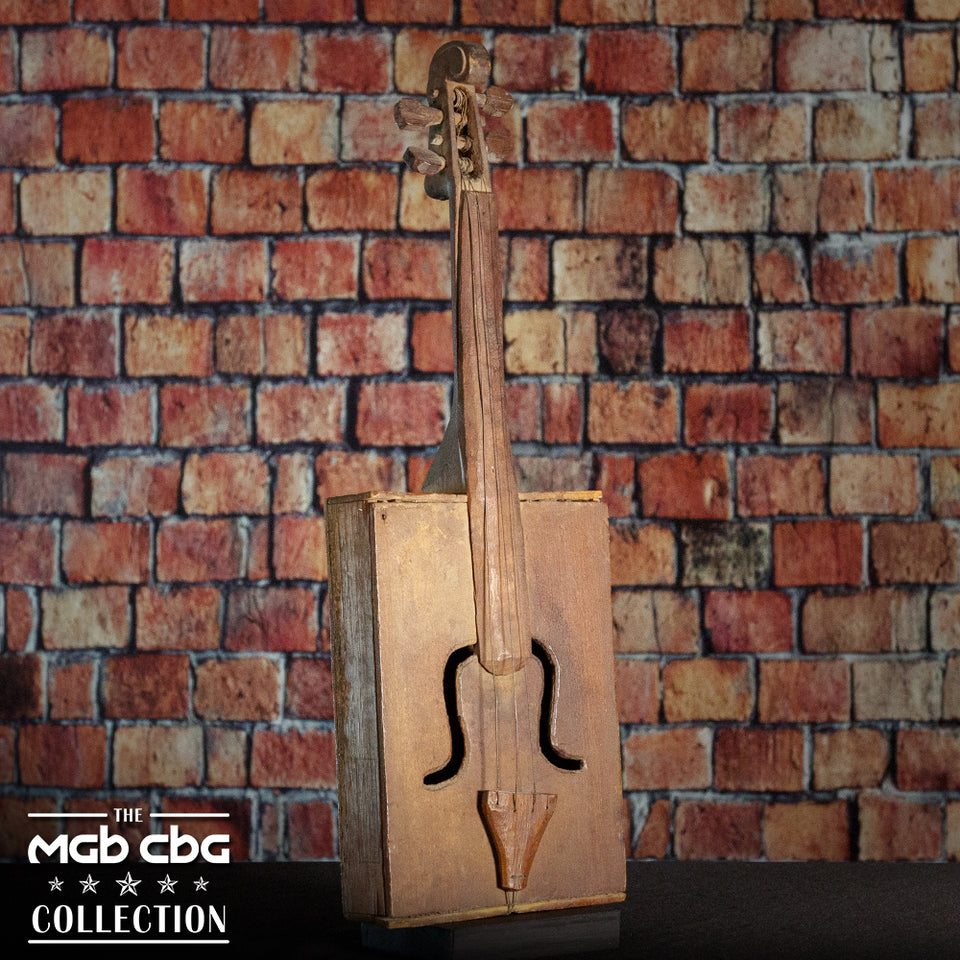

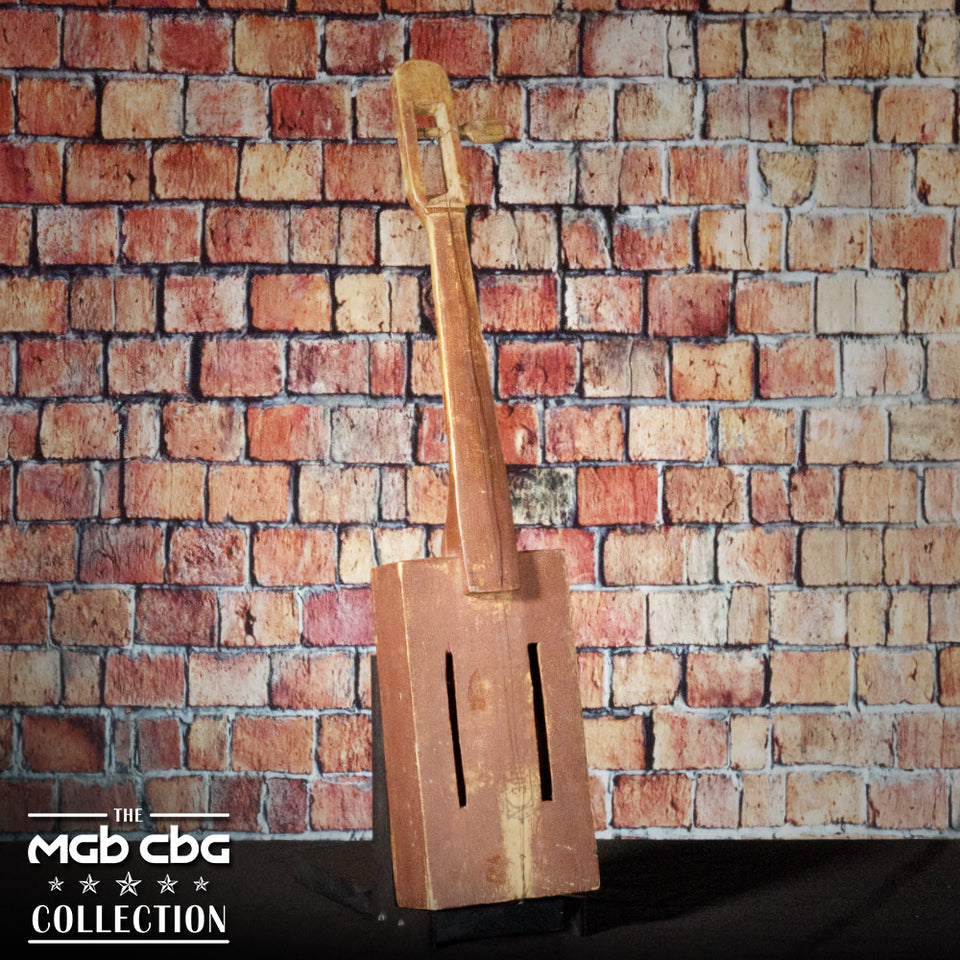

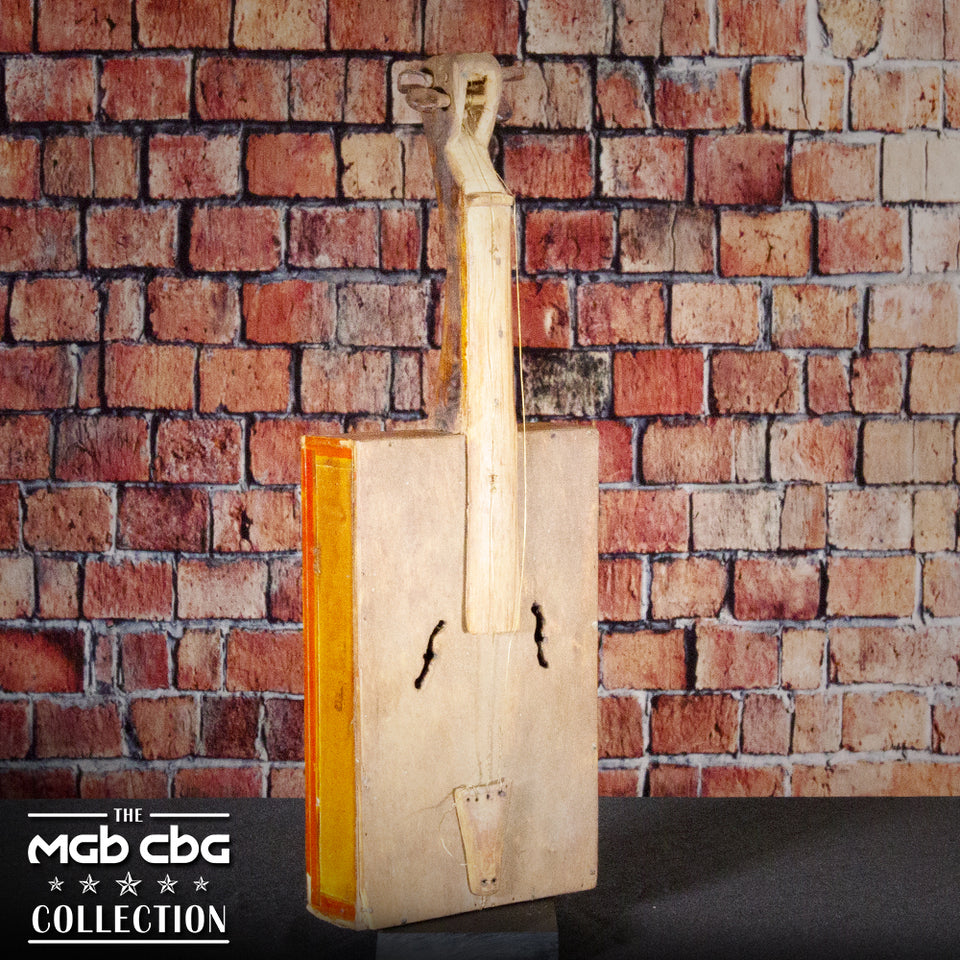

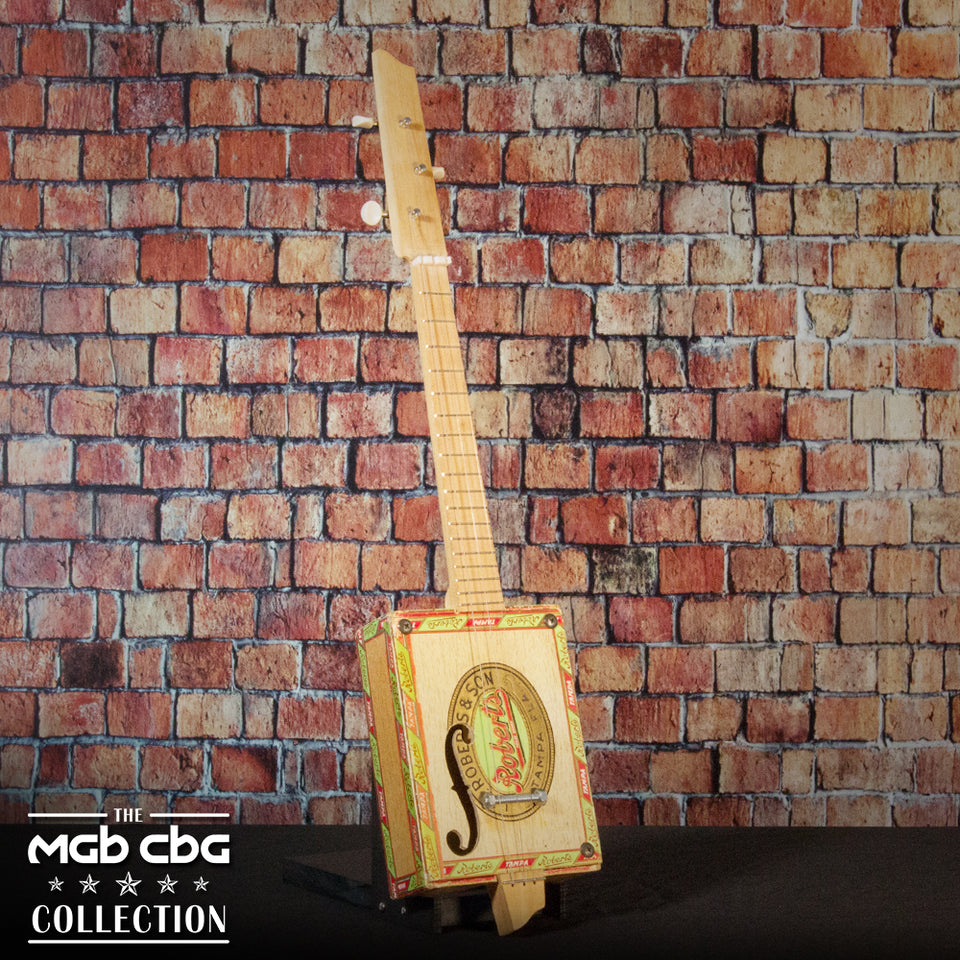

Included in this book are illustrations of 144 cigar box style instruments. These are a sampling of the instruments built by MGB over the last 15 years.

The Easy Fretter is a pre loaded and ready to go fretboard that is sized to fit the 2 inch material found at the big box stores. It is made from black composite material.  Ultra smooth satin finished composite fretboard 25 1/2 inch scale 19 3/8 inches long 1 1/2 inches wide  .24 inch thick Available in Chromatic and Diatonic 13 frets on Diatonic  Face fret markers on Chromatic Zero fret installed  Zero fret is .020 taller than other frets Rosewood string spacer included for either 3 or 4 strings Use woodworking glue to secure the fretboard to the neck. Strongly encourage using a clamping caul to help keep the neck and fret board straight. The string spacers mount at the end to keep the strings aligned.

6-string Gold hard-tail bridge perfect for electric guitars. Top-loading. Sturdy metal construction, bright mirror-like gold finish. Gold mounting screws and allen wrench included. Individually adjustable string saddles allow exact intonation adjustments 6-string Gold hard-tail bridge perfect for electric guitars. Top-loading. Sturdy metal construction, bright mirror-like gold finish. Gold mounting screws and allen wrench included. Individually adjustable string saddles allow exact intonation adjustments Also available in Black and Chrome finishes. Easy Bridge Placement Template HERE

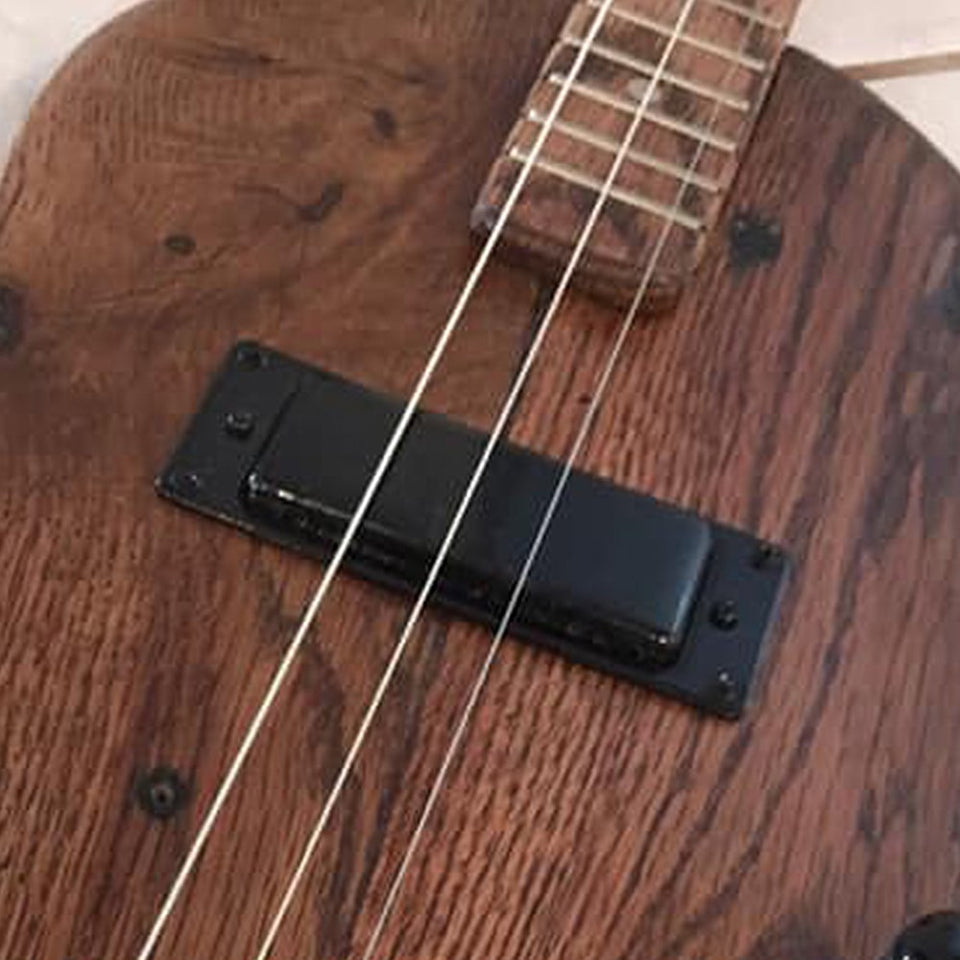

What's a Hot Tuna? Let's talk about it!   Mini Humbucker Split coil wiring Available in chrome 1 1/2 by 3 5/8  by 7/8 Watch Video: MGB Hot Tuna Mini Humbucker The Hot Tuna with its crazy name is pretty straightforward mini humbucker. It's small in scale and works out perfect for a lot of cigar box guitars. This humbucker has split coil wiring and is a little bit different than some of the wirings you'll see on some of our other pickups. Make sure to watch our video on that above.  The Hot Tuna is a new pickup that we've designed and we are really proud of we've done, we hope you guys like it and help make The Hot Tunas a household name. Black wire is hot, green/braid is ground and red/white are where the coils connect. Note: Also available with our push pull pot harness. This allows you to easily move from a single coil pickup to a humbucker by simply pushing or pulling the tone knob. Soldered sealed and tested. This is our favorite setup at MGB Guitars.
