Bass Guitar Parts

4 string bridge for bass guitar Chrome or black finish 19mm  string spacing on chrome 20mm on black

Chrome or black bass 4 string tailpiece. .6 inch or 15mm spacing.

Input jack for bass guitar Made to fit 1/4 inch instrument cable Chrome finish

Chrome bass string retainer Chrome finish

Closed chrome bass guitar tuner One left side tuner Chrome or Black finish Fits .6 inch thick headstock

Closed chrome bass guitar tuner One right side tuner Chrome or black finish Fits .6 inch thick headstock

Open chrome bass guitar tuner One left side tuner Chrome or black finish Fits .6 inch thick headstock

Open chrome bass guitar tuner One right side tuner Chrome or black finish Fits .6 inch thick headstock

5 string bridge for bass guitar Chrome or black finish 16.5 mm string spacing

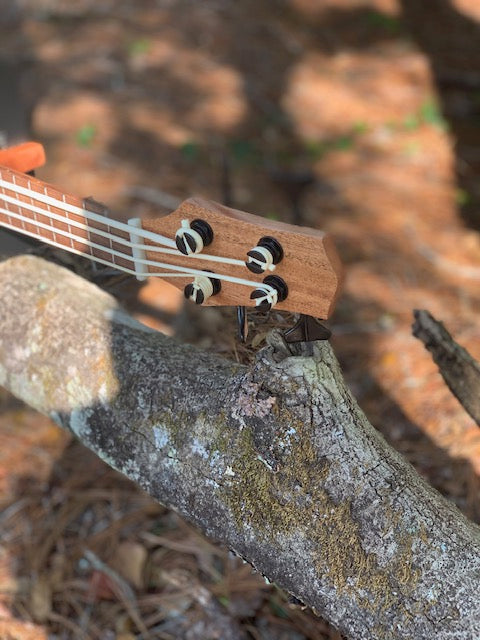

This kit does not include a box. This kit includes all the items needed to build a 20 (see note below on intonation) inch scale electric U-Bass. The neck is made of Okume and the fret board and bridge are made of Walnut. Polyurethane strings are provided as well as a bone nut that is fitted to the strings. The neck includes a hanger bolt for mounting to the box. The minimum box length that can be used is 12 inches and a box that is 13 inches or longer is recommended. Make sure to reinforce the box and we suggest using a 27093 reinforcement plate. The heavy duty tuners are made specifically for this type of instrument. Unlike other tuners  you will need to disassemble the tuner to install it in head stock. Remove the screw, gear and axle before installing the tuner body. Reassemble and and add washer and ferrule. Tighten with a 15mm wrench. Normal string winders will not work and we suggest you use our 24010 winder which will accommodate the oversized knobs on these tuners. Due to the mass and size of the strings we have found that a scale length of 20.3 inches works better for intonation. The strings are anchored on the bridge using knots on the inside of the box. Our 41003 template is available for aligning and positioning the bridge. The bridge can be glued to the box however we prefer using screws and finish washers. When the bridge is installed the string clearance holes can be drilled through the box top. The electronics package includes a compensated piezo pickup, preamp/equalizer, tuner and battery box.  Included are template/trim rings for mounting the components. The battery box uses two 2032 (not included) round batteries which are installed positive side up. A plug will need to be installed in the jack for the tuner to operate. Tune to EADG. Special note: As the strings are soft and the leading edge of the nut is quite sharp, oftentimes the strings will bind on the nut and the gears will grind till they fail. The solution is to lift the strings over the nut as you tighten the tuners.    Check online for videos on installing U-Bass strings.

Special note: As the strings are soft and the leading edge of the nut is quite sharp, oftentimes the strings will bind on the nut and the gears will grind till they fail. The solution is to lift the strings over the nut as you tighten the tuners   Easy to install. Includes two right and two lefts. Fits headstocks that are .500 inch thick. Fits hole that is .525 inch.

High quality bass strings made for 30 inch scale length builds. Strings measure .045, .065, .085 and .105 in diameter. Works perfectly with the MGB Bass Super Neck all bass tuners. See neck here. See tuner here.

High quality bass strings. Strings measure .045, .065, .080 and .100 in diameter.

Perfect for four strings builds. This oak tailpiece measures 3 x 2 by .25 inches. Holes are .05, .065, '095 and .110 but can be easily enlarged if need   Bridge

Four pack of single shot bridges for bass guitar Chrome or black finish Allows flexible string spacing

Two pack of Rosewood thumb rests. 2 1/2 by 1/2 by 1/2 inches Mounting Screws included

Made for bass builds and measuring 9 Kohms, these new pickups are wide enough for 4 string bass builds. They will also work for guitar installations. These low-profile pickups are designed specifically for surface mounting on cigar boxes. They eliminate the need for cutting a large hole in the box and slotting the neck. Simply mount on the surface of the box and run the wire through a small hole to connect with the rest of the electronics. Make sure the magnets face the strings. Secure the pickup to the cover with double sided tape, hot melt glue or E6000. Cover not included. Dimensions are 1.3" wide, 2.75" tall and .25" thick. Find covers here

These covers are made specifically for the K-Nine bass pickups. they measure 3.65" by 2.0" by .32". Hardware included.

Quality Crafted Guitar Neck | Easy to Install 25.5 inch Scale Suitable for 6 string builds Head stock is pre-drilled for tuners 22 frets installed and nicely finished Truss rod installed 0.6" thick headstock 1 5/8" width at nut 2" width at 12th fret Overall length 25 3/4" Top and side fret markers are included Plastic slotted Nut Hanger bolt is installed and hardware is included 1/8 inch fret board shim is included as well as thin back angle shim Box should be 10 inches in length Maple construction with rosewood fingerboard Bridge placement template The perfect neck for your next six string build. The neck is completely finished and ready to go. Simply reinforce your box and bolt the neck on. The finger board is radiused just like high end guitar necks. Solid maple construction with a rosewood fret board set for 25.5  inch scale. The neck is meticulously sanded and the maple portion has a spray finish. The rosewood fret board is unfinished. Watch This Video:
