Ukulele Guitar Parts

Helpful template for placing bridge in perfect alignment with the neck. • 1/8" MDF board Watch This Video:

Helpful template for placing bridge in perfect alignment with the neck. • 1/8" Acrylic board Watch This Video:

Set of 4 ukulele enclosed tuners, chrome finish. For 1/2" headstock thickness. Two Right Tuners & 2 Left Tuners. Recommend using the MGB 10mm Tuner Drill Bit for drilling the opening.

Quality Ukulele Guitar Strings | Made in the USA

Nut/Saddle/Bridge Kit For Concert Ukuleles Rosewood bridge Headstock nut Bridge nut Screw hole covers

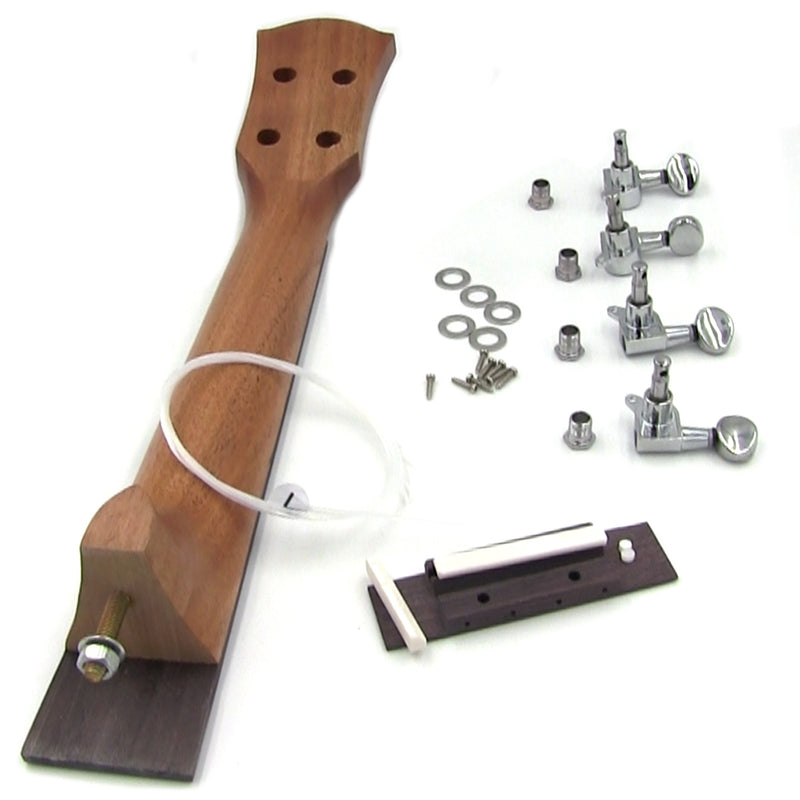

Minimum box length is 9 inches. Includes 13.5 inch scale neck that is sanded and finished. Neck has hanger bolt and hardware for easy mounting on any box. Frets and real Rosewood fret board installed, includes pre-slotted nut. Four high quality enclosed tuners with hardware. Rosewood bridge with saddle and two filler plugs. Four labeled nylon strings. Watch the Concert Ukulele kit video but make sure to check for 13.5 inch scale length. Ukulele Kit Includes: Neck w/hanger bolt & hardware 4 Enclosed Tuners (2 left & 2 right) & tuner hardware Nylon strings (labeled) Rosewood bridge w/bone saddle (two filler plugs) Note: Box/body not included! Watch This Video: Watch This Video:

Helpful template for placing bridge in perfect alignment with the neck. • 1/8" Acrylic Watch This Video:

Minimum box length is 9 inches. Includes 17 inch scale neck that is sanded and finished. Neck has hanger bolt and hardware for easy mounting on any box. Frets and fret board installed, includes bone nut. Four high quality enclosed tuners with hardware. Rosewood bridge with bone saddle and two filler plugs. Four labeled nylon strings. Ukulele Kit Includes: Neck w/hanger bolt & hardware 4 Enclosed Tuners (2 left & 2 right) & tuner hardware Nylon strings (labeled) Rosewood bridge w/bone saddle (two filler plugs) Note: Box/body not included! Watch This Video: Watch This Video:

Helpful template for placing bridge in perfect alignment with the neck. • 1/8" acrylic board Watch This Video:

Set of 4 ukulele enclosed tuners, black finish. For 1/2" headstock thickness. Two Right Tuners & 2 Left Tuners. Recommend using the MGB 10mm Tuner Drill Bit for drilling the opening.

For use on all MGB bolt on necks. This one inch by three inch 11 gauge steel plate provides additional rigidity to the connection between the neck and the top of the box. The elongated slots accepts 1/4 inch or 10mm hanger bolts.

Perfect for installing bolt-on necks and tuners High quality Fits 10mm nuts and ferrules Works with 1/4 inch drive A very handy tool for tightening the ferrules on a wide assortment of MGB tuners. Also works on the nuts on the hanger bolt nuts. found on ukulele necks as well as Zippy necks.

Set of 4 ukulele enclosed tuners, gold finish. For 1/2" headstock thickness. Two Right Tuners & 2 Left Tuners. Recommend using the MGB 10mm Tuner Drill Bit for drilling the opening.

MGB Guitars is proud to introduce their Easy Box enclosure. This innovative enclosure has two sides with two distinct uses. One with a sound hole and one with out. This box was designed and built using the same principles used in acoustic instrument construction. The box is built using purfling and braces to create an incredibly strong and rigid structure. Additional reinforcements were added to key locations to allow when securing bridges. Cover plates are available to cover the sound hole when it is on the back side.  Measuring  9 3/4 inches by 7 inches and 2 1/2 thick the box is made from thin ply with a top veneer of Sapele. This box provides a perfect canvass for creating your own piece of musical art. The photo of the box split in two is to show the placement of internal components. Roughly 7 inches by 9.75 inches Approximately 2 1/2 inches deep Acoustic side includes 2 3/8 inch sound hole The box head is a full 5/8 thick Multiply construction with Sapele veneer .

Set includes 4 30 inch strings for baritone ukuleles. Strings are numbered 1-4 and sizes included are .026 and .031 in nylon and .029 and .037 in metal wrapped strings. Tuning is dgbe.

This kit does not include a box. This kit includes all the items needed to build a 20 (see note below on intonation) inch scale electric U-Bass. The neck is made of Okume and the fret board and bridge are made of Walnut. Polyurethane strings are provided as well as a bone nut that is fitted to the strings. The neck includes a hanger bolt for mounting to the box. The minimum box length that can be used is 12 inches and a box that is 13 inches or longer is recommended. Make sure to reinforce the box and we suggest using a 27093 reinforcement plate. The heavy duty tuners are made specifically for this type of instrument. Unlike other tuners  you will need to disassemble the tuner to install it in head stock. Remove the screw, gear and axle before installing the tuner body. Reassemble and and add washer and ferrule. Tighten with a 15mm wrench. Normal string winders will not work and we suggest you use our 24010 winder which will accommodate the oversized knobs on these tuners. Due to the mass and size of the strings we have found that a scale length of 20.3 inches works better for intonation. The strings are anchored on the bridge using knots on the inside of the box. Our 41003 template is available for aligning and positioning the bridge. The bridge can be glued to the box however we prefer using screws and finish washers. When the bridge is installed the string clearance holes can be drilled through the box top. The electronics package includes a compensated piezo pickup, preamp/equalizer, tuner and battery box.  Included are template/trim rings for mounting the components. The battery box uses two 2032 (not included) round batteries which are installed positive side up. A plug will need to be installed in the jack for the tuner to operate. Tune to EADG. Special note: As the strings are soft and the leading edge of the nut is quite sharp, oftentimes the strings will bind on the nut and the gears will grind till they fail. The solution is to lift the strings over the nut as you tighten the tuners.    Check online for videos on installing U-Bass strings.

Special note: As the strings are soft and the leading edge of the nut is quite sharp, oftentimes the strings will bind on the nut and the gears will grind till they fail. The solution is to lift the strings over the nut as you tighten the tuners   Easy to install. Includes two right and two lefts. Fits headstocks that are .500 inch thick. Fits hole that is .525 inch.

MGB Guitars is proud to introduce their Bigfoot Easy Box enclosure. This innovative enclosure has two sides with two distinct uses. One with a sound hole and one with a Bigfoot sound hole. This box was designed and built using the same principles used in acoustic instrument construction. The box is built using purfling and braces to create an incredibly strong and rigid structure. Additional reinforcements were added to key locations to allow when securing bridges. Cover plates are available to cover the sound hole.  Measuring  9 3/4 inches by 7 inches and 2 1/2 thick the box is made from thin ply with a top veneer of Sapele. IT comes in two versions one is unfinished and the other has several coats of spray finish. This box provides a perfect canvass for creating your own piece of musical art. The photo of the box split in two is to show the placement of internal components. Roughly 7 inches by 9.75 inches Approximately 2 1/2 inches deep Acoustic side includes 2 3/8 inch sound hole The box head is a full 5/8 thick Multiply construction with Sapele veneer   .

Polyurethane strings for U Bass instruments.  Strings measure .196, .165, .117 and .093 and 32 inches long.

This Deluxe Kit is similar to the standard product but includes white banding along both sides of the neck and black side fret markers. Includes 15 inch scale neck that is sanded and finished. Neck has hanger bolt and hardware for easy mounting on any box. Fretboard is Rosewood. Frets and fret board are installed, includes bone nut. Four high quality enclosed tuners with hardware. Rosewood bridge with bone saddle and two filler plugs. Four labeled nylon strings. Ukulele Kit Includes: Neck w/hanger bolt & hardware 4 Enclosed Tuners (2 left & 2 right) & tuner hardware Nylon strings (labeled) Rosewood bridge w/bone saddle (two filler plugs) Available with Chrome, Black or Gold tuners Note: Box/body not included! Watch This Video: Watch This Video:

Minimum box length is 7 inches. Box not included. Includes 11 inch scale neck that is sanded and finished. Neck has hanger bolt and hardware for easy mounting on any box. Frets and real Rosewood fret board installed, includes pre-slotted nut. Four high quality enclosed tuners with hardware. Rosewood bridge with saddle and two filler plugs. Four labeled nylon strings. Watch the Concert Ukulele kit video but make sure to check for 11 inch scale length. Ukulele Kit Includes: Neck w/hanger bolt & hardware 4 Enclosed Tuners (2 left & 2 right) & tuner hardware Nylon strings (labeled) Rosewood bridge w/bone saddle (two filler plugs) Note: Box/body not included! Watch This Video: Watch This Video:

Helpful template for placing bridge in perfect alignment with the neck. Check and confirm scale length of 11.5 inches at center of saddle. • 1/8" Acrylic Watch This Video:

Makes bridge placement a breeze This template is specifically made for use with the U-Bass kit. Provides a the right location for the bridge. Always check to make sure the scale length is 20 5/16" at the bottom of the saddle where the lowest string rests.

High quality padded ukulele carry bag. Heavy padded Cordura construction Waterproof and dust proof Front panel pocket Carry handle and back pack straps 24 x 9 x 3 inches Sized for Concert Ukuleles and smaller instruments

Measuring 1.4 inches wide, .3 inches all and .2 inches thick these nuts are well suited for ukuleles and other builds with thinner fretboards. They are available blank, three or four string slots.

Works for the Tuner/Preamp or the 9 volt preamp Suggest using Amana Tool's 47222 router bit

Preamp/equalizer 9v (battery not included) Mounting hardware included Cable Piezo Includes template/trim ring with screws Includes jack plate, drill 1 inch clearance hole Includes modified ukulele saddle Works perfectly with all MGB ukulele kits Preamp/Equalizer router template

Minimum box length is 9 inches, box not included. Includes 8 string17 inch scale neck that is sanded and finished. Neck has hanger bolt and hardware for easy mounting on any box. Frets and fret board installed, includes slotted bone nut. Include a right and left tuner set with hardware. Rosewood bridge with bone saddle and two filler plugs. Four labeled nylon strings. Ukulele Kit Includes: Neck w/hanger bolt, reinforcement plate & hardware One right and one left tuners with hardware  Set of 8 strings for ukulele.  Rosewood bridge w/bone saddle (two filler plugs) Building this kit is very similar to all of our other ukulele kits. Please note that with 8 strings the tension is more that double that of a standard ukulele neck. Make sure to have a solid box with reinforcements as necessary. Scale length of 17 inches from inside edge of nut to center of saddle must be maintained. Our standard Tenor template will not work with this kit, use the 8 string template found here. Assembly available HERE This kit pairs well with the 9 Volt preamp (not included).       Watch This Video: Watch This Video:

Helpful template for placing bridge in perfect alignment with the neck. • 1/8" acrylic board Watch This Video:

MGB Guitars is proud to introduce their Easy Box Trappy enclosure. According to Bill Jehle this shape for an instrument body dates to the early 1800s, before cigar boxes were created. This innovative trapezoidal enclosure has two sides with two distinct uses. One with a sound hole and one without. The box comes in three versions, one with no control plate opening, one with the control plate on the sound hole side and one with the control plate opening on the back. This box was designed and built using the same principles used in acoustic instrument construction. The box is built using purfling and braces to create an incredibly strong and rigid structure. Additional reinforcements were added to key locations to allow when securing bridges. Cover plates are available to cover the sound hole when it is on the back side.  Measuring 12 1/2 inches long, by 4 1/2 inches at the top, by 8 inches at the bottom and 2 1/2 thick, the box is made from thin ply with a top veneer of Sapele. This box provides a perfect canvass for creating your own piece of musical art. The box head and tail are a full 5/8 thick. They are sufficiently long for almost all styles of builds.
